U Type Supporting Shoes
| A | B | C | D | E | F | Th | H,D | Surface Finish | Raw Material | Art- No. |
|---|---|---|---|---|---|---|---|---|---|---|
| 71 | 200 | 200 | 50 | 50 | 5.0 | 8X10.0 | White Zinc Plating | Mild Steel | PI10-51-31-0001 | |
| 71 | 200 | 200 | 50 | 60 | 4.0 | 8X11.0 | Hop Dip Galvanizing | Mild Steel | PI10-51-40-0002 | |
| 71 | 200 | 200 | 50 | 60 | 4.0 | 8X11.0 | Self Color | Stainless Steel | PI10-52-30-0002 | |
| 71 | 200 | 200 | 60 | 60 | 5.0 | 8X10.0 | Hop Dip Galvanizing | Mild Steel | PI10-51-40-0003 | |
| 91 | 200 | 200 | 50 | 50 | 5.0 | 8X10.0 | White Zinc Plating | Mild Steel | PI10-51-31-0004 | |
| 91 | 200 | 200 | 50 | 60 | 4.0 | 8X11.0 | Hop Dip Galvanizing | Mild Steel | PI10-51-40-0005 | |
| 91 | 200 | 200 | 50 | 60 | 4.0 | 8X11.0 | Self Color | Stainless Steel | PI10-52-30-0005 | |
| 91 | 200 | 200 | 60 | 60 | 5.0 | 8X10.0 | Hop Dip Galvanizing | Mild Steel | PI10-51-40-0006 | |
| 101 | 200 | 200 | 50 | 50 | 5.0 | 8X10.0 | White Zinc Plating | Mild Steel | PI10-51-31-0007 | |
| 101 | 200 | 200 | 50 | 60 | 4.0 | 8X11.0 | Hop Dip Galvanizing | Mild Steel | PI10-51-40-0008 | |
| 101 | 200 | 200 | 60 | 60 | 5.0 | 8X10.0 | Hop Dip Galvanizing | Mild Steel | PI10-51-40-0009 | |
| 121 | 200 | 200 | 50 | 50 | 5.0 | 8X10.0 | White Zinc Plating | Mild Steel | PI10-51-31-0010 | |
| 121 | 200 | 200 | 50 | 60 | 4.0 | 8X11.0 | Hop Dip Galvanizing | Mild Steel | PI10-51-40-0011 |

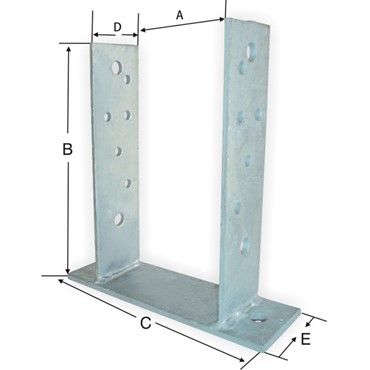

A, B, C, D, E, F = Dimension
Th = Thickness
