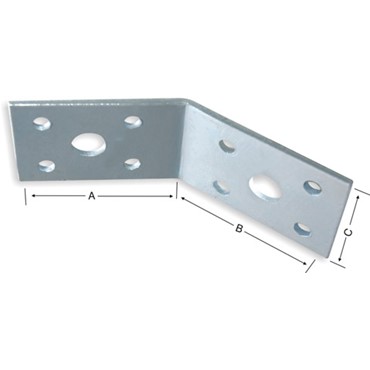

Bracing Plates (Equal Sided)
| A | B | C | D | E | F | Th | H,D | Surface Finish | Raw Material | Art- No. |
|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 50 | 35 | 2.5 | 8X4.5; 2X8.0 | White Zinc Plating | Mild Steel | PI06-51-31-0701 | |||
| 70 | 70 | 55 | 2.5 | 14X4.5; 2X10.0 | White Zinc Plating | Mild Steel | PI06-51-31-0702 | |||
| 90 | 90 | 65 | 2.5 | 20X4.5; 2X10.0 | White Zinc Plating | Mild Steel | PI06-51-31-0703 | |||
| 90 | 90 | 65 | 2.5 | 20X4.5; 2X10.0 | Magni | Mild Steel | PI06-51-44-0703 | |||
| 100 | 100 | 35 | 2.5 | 16X4.5; 4X10.0 | White Zinc Plating | Mild Steel | PI06-51-31-0704 | |||
| 100 | 100 | 90 | 2.5 | 30X4.5; 12X7.0; 2X13.0 | White Zinc Plating | Mild Steel | PI06-51-31-0705 | |||
| 140 | 140 | 55 | 2.5 | 36X54.5; 4X10.0 | White Zinc Plating | Mild Steel | PI06-51-31-0706 |
A, B, C, D, E, F = Dimension
Th = Thickness
